Water decal "Rixe" gray small

Wippermann drive chain No.18 (double reinforced)

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Ø Pin: 4.15 mm · Manufacturer: Wippermann · Material: Steel · Surface: blank / oiled · Color: gray · Rolling circumference: 1448 mm · Number of chain links: 114 pcs · Chain lock type: Spring lock · Ø bore: 4.2 mm

GPO gasket set | Puch E50

Manufacturer: GPO · Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Ø outlet inside: 19.9 mm · Hole spacing inlet: 32 - 38 mm · Number of components: 7 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Decompressor: Yes · Area of application: Standard

GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 45 mm · Width: 125 mm · Height: 55 mm · Total length: 135 mm · Candle thread: short · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: Yes · Area of application: Tuning

Rito Crankshaft Racing | Puch E50

Manufacturer: Rito · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Weight: 970 g · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Thread length: 11 mm · Thread length: 14 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 15 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Area of application: Racing · Area of application: Tuning · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm

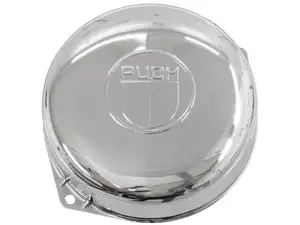

swiing® revival ignition cover "Puch" emblem chrome | Puch

Manufacturer: swiing® revival parts · Material: Steel · Color: Chrome · Surface: chrome-plated · Height: 48 mm · Ø inside: 125 mm · Ø outside: 130 mm · Number of fixing points: 2 pcs · Alternative version of the Puch OEM number: 349.3.10.034.2

GPO sprocket 45 teeth chrome | Puch Maxi, X30 NG-2AH

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Ø mounting hole: 6.7 mm · Ø inside: 94 mm · Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: silver · Number of teeth: 45 pcs · Ø bolt circle: 106 mm · Hole spacing: 36.5 mm · Hole spacing 2: 68 mm · Cranking (offset): 8 mm · Number of fixing points: 6 pcs

Continental 2.50 x 17" tires KKS

Inventory-managed: No · Manufacturer: Continental · Tire width: 2.5 " · Tire width [mm]: 63.5 · Color: black · Width: 2 1/2 " · Wheel size: 17 " · Old designation: 21 x 2.5 " · Speed index: B = 50 km/h · Load capacity index: 43 = 155 kg · Profile type: KKS 10 · Tire type: Allround · White wall: No · Tubeless (yes/no): Tubetype TT (requires hose)

Rixe sticker Sachs tank (165 x 18 mm)

Material: Polyvinyl chloride (PVC) · Place of use: Tank (+ frame) · Width: 165 mm · Height: 18 mm · Consistency: UV-resistant · Consistency: petrol resistant · Rear side texture: Adhesive

Rixe sticker Sachs tank Ø 43 mm

Material: Polyvinyl chloride (PVC) · Place of use: Tank (+ frame) · Diameter: 43 mm · Consistency: UV-resistant · Consistency: petrol resistant · Rear side texture: Adhesive
