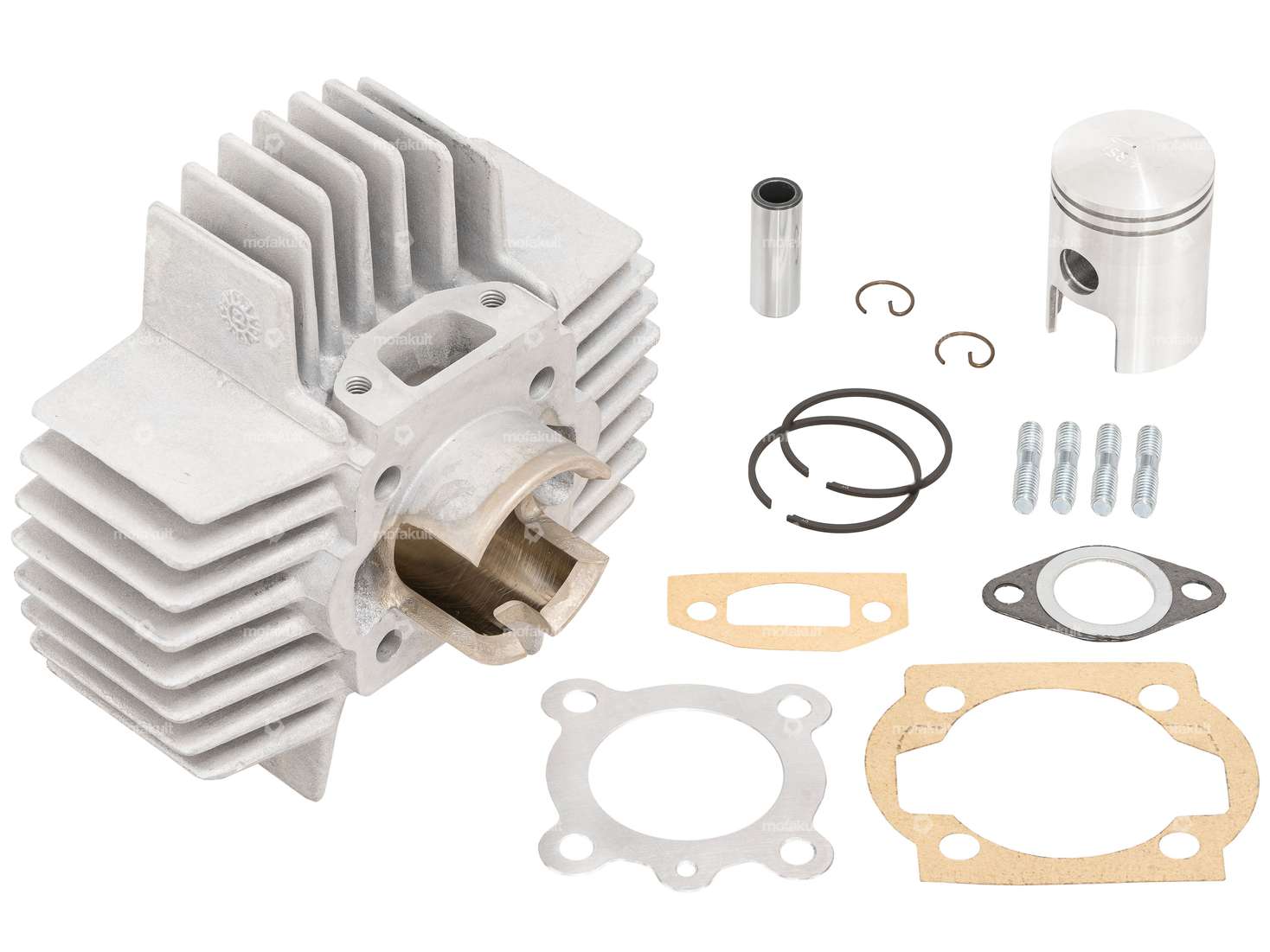

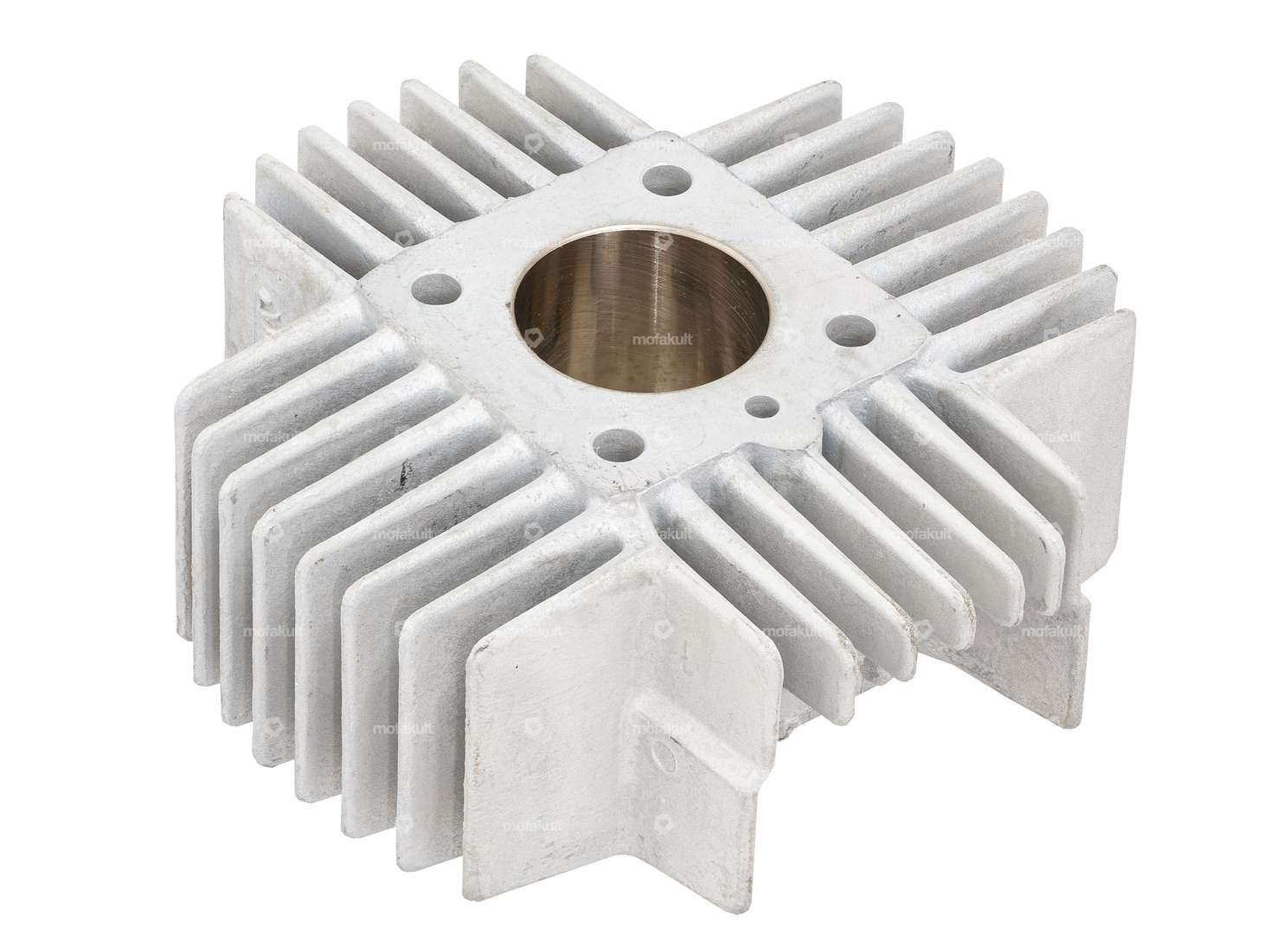

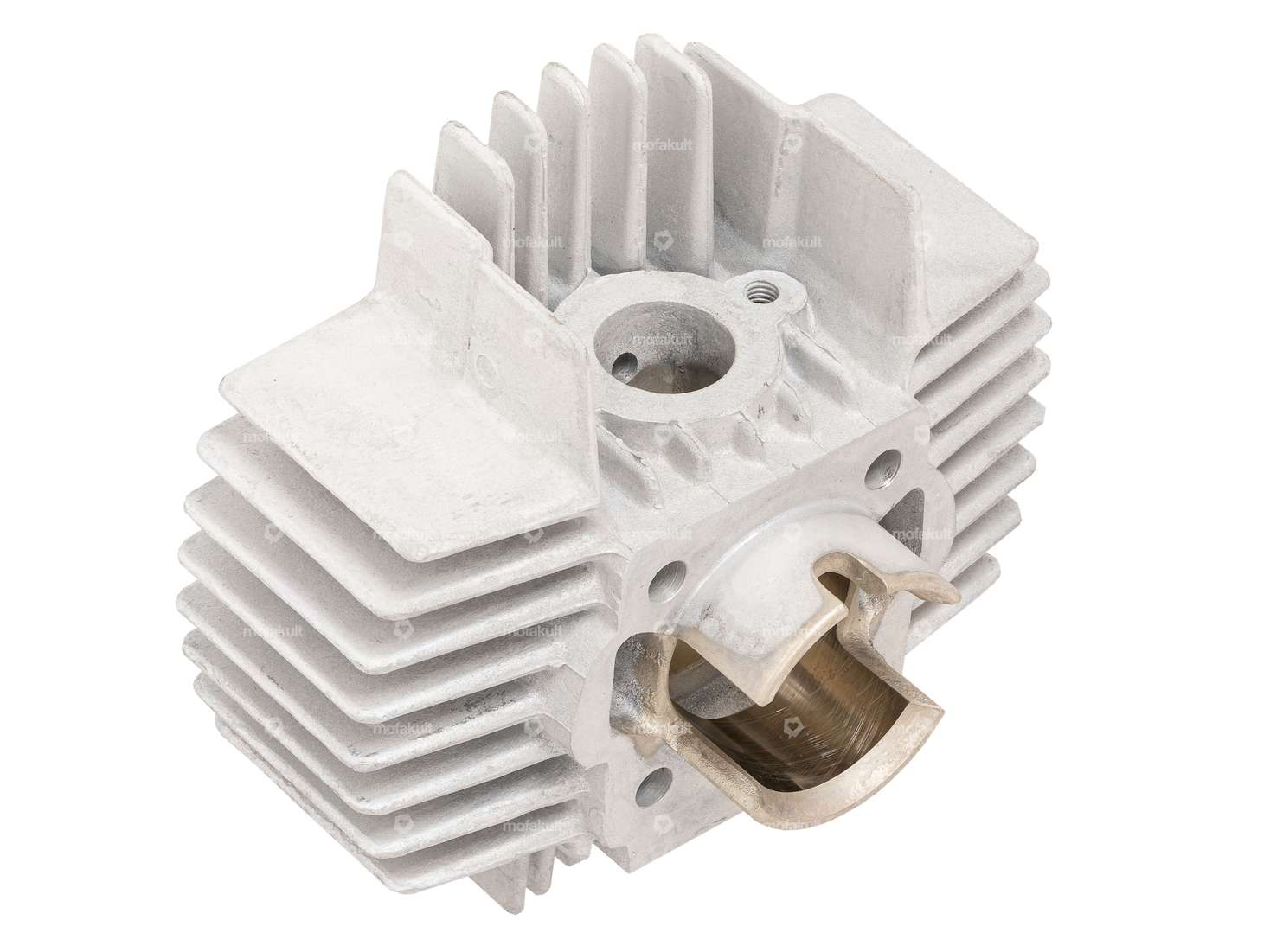

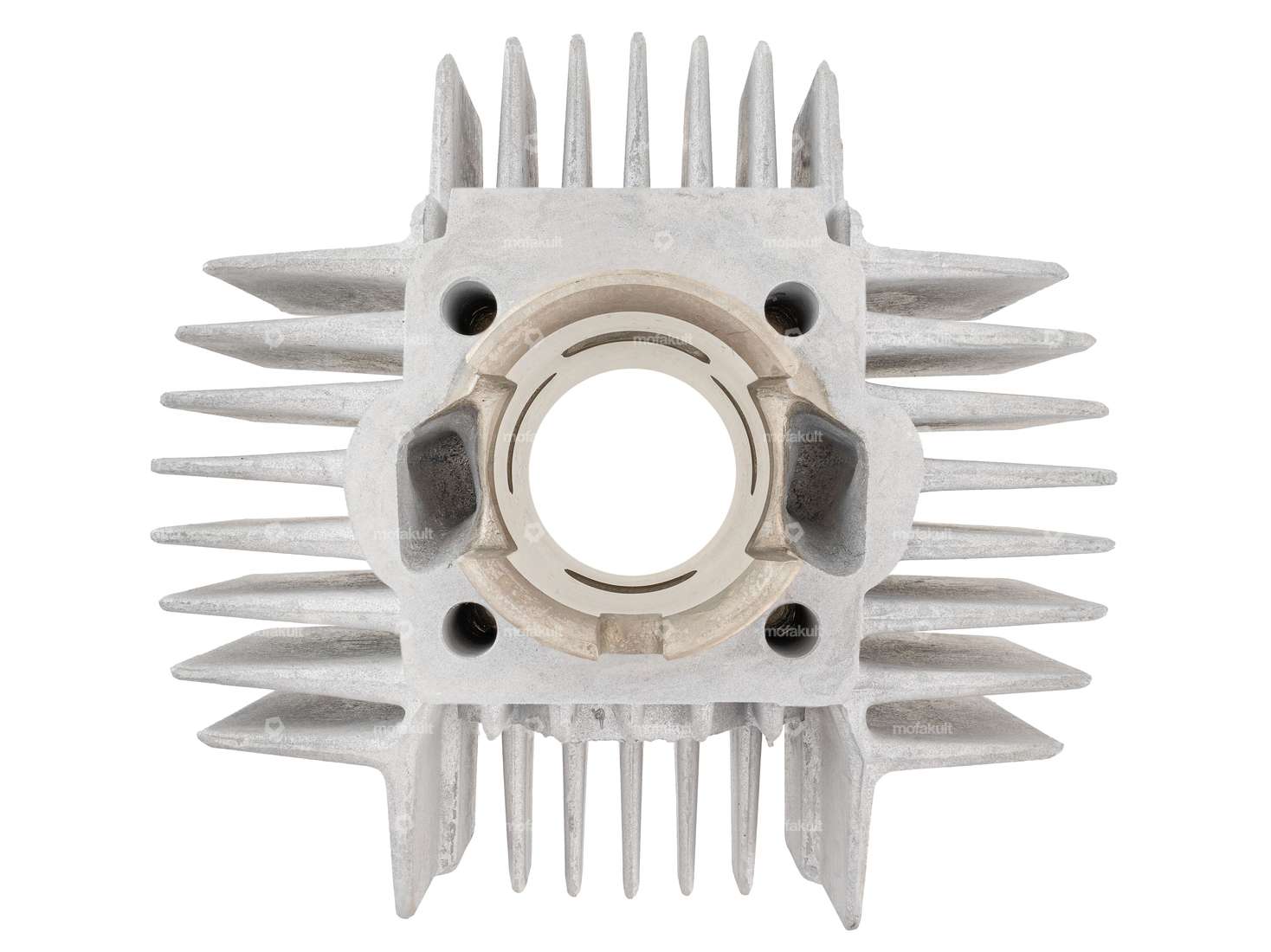

Airsal 38 mm cylinder kit (large ribs) | Puch

GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Surface: sandblasted · Material: Aluminum · Ø cylinder: 38 mm · Total length: 135 mm · Height: 55 mm · Candle thread: short · Width: 125 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Area of application: Standard · Decompressor: No

swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)

Manufacturer: swiing® revival parts · Surface: galvanized (blue) · Diameter: 5.95 mm · Material: Steel · Nominal diameter (thread): 6 mm · Total length: 30 mm · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Strength class: 10.9

Airsal piston 38 mm | Puch

Manufacturer: Airsal · Ø outside piston (A): 37.95 mm · Compression height (C): 22.3 mm · Curvature (D): 3.8 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.6 mm · Ø piston pin (B): 12 mm

swiing® revival stud bolt M6x106 (10.9 strength class)

Manufacturer: swiing® revival parts · Material: Steel · Nominal diameter (thread): 6 mm · Surface: galvanized (blue) · Total length: 106 mm · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Thread length: 20 mm · Puch OEM number: 360.1.10.034.1

Airsal gasket set 38 mm | Puch

Manufacturer: Airsal · Ø cylinder: 38 mm · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Number of components: 4 pcs · Hole pattern [mm]: 44 x 44 mm · Area of application: Tuning

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)

Manufacturer: Motorex · Oil type: semi-synthetic · Color: green · Contents: 1000 ml

Airsal piston ring 38x1.5 mm hard chrome-plated | Puch

Manufacturer: Airsal · Surface: hard chrome plated · Nominal diameter: 38 mm · Piston ring impact: Internal fuse (IS) · Height: 1.5 mm

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing type: Needle roller and cage assembly · Dimension needle bearing: 12/15 x 14.2 · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Width: 14.2 mm · Ø inside: 12 mm · Ø outside: 15 mm · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

GPO clutch 3-jaw aluminum | Puch E50

Manufacturer: GPO · Material: Aluminum · Material: Steel · Material addition: Composite materials · Recording type: Cone mounting · Number of jaws: 3 pcs · Number of springs: 3 pcs · Ø inside: 12 mm · Ø inside: 14.6 mm · Thickness: 20.9 mm · Ø outside: 93 mm · Area of application: Original · Area of application: Standard

swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)

Manufacturer: swiing® revival parts · Surface: galvanized (blue) · Diameter: 5.95 mm · Material: Steel · Nominal diameter (thread): 6 mm · Total length: 30 mm · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Strength class: 10.9

swiing® revival plain bearing clutch basket | Puch E50

Manufacturer: swiing® revival parts · Material: special bearing bronze · Nominal diameter inside: 15 mm · Ø inside: 15 mm · Ø outside: 17 mm · Total height: 21.75 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

GPO 38 mm Cylinder Head, AT Model, New Version | Puch

Manufacturer: GPO · Material: Aluminum · Ø cylinder: 38 mm · Total length: 135 mm · Height: 55 mm · Width: 140 mm · Number of fixing points: 4 pcs · Decompressor: No

Outlet gasket 18 - 22 mm metal ring

Manufacturer: GPO · Place of use: Outlet · Material: Sealing carton · Material: Sheet metal (steel) · Ø mounting hole: 6.7 mm · Ø inside: 22 mm · Thickness: 2 mm · Number of fixing points: 2 pcs · Hole spacing: 38 - 42.5 mm

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)

Manufacturer: Motorex · Oil type: semi-synthetic · Color: green · Contents: 1000 ml

swiing® revival crankshaft "original" | Puch E50

Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® revival parts · Thread type: MF10x1 (fine pitch thread) · Thread type: MF8x1 (fine pitch thread) · Cheek type: standard · Material: Steel · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Number of gears: 1 pcs · Thread length: 11 mm · Thread length: 15 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Weight: 873 g · Ø Bearing seat (ignition side): 17 mm · Area of application: Standard · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm

GPO gasket outlet metal ring 18 - 22 mm | Puch

Manufacturer: GPO · Place of use: Outlet · Ø mounting hole: 6 mm · Ø inside: 22.15 mm · Thickness: 2 mm · Number of fixing points: 2 pcs · Hole spacing: 38 - 43 mm

GPO Special Cylinder Stud Bolt Set M6x106, Galvanized | Puch

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Diameter: 7 mm · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Drive: External hexagon · Total length: 106 mm · Width across flats: 10 mm · Thread length: 15 mm · Thread length: 19 mm · Strength class: 10 · Strength class: 10.9 · Alternative version of the Puch OEM number: 360.1.10.034.1
