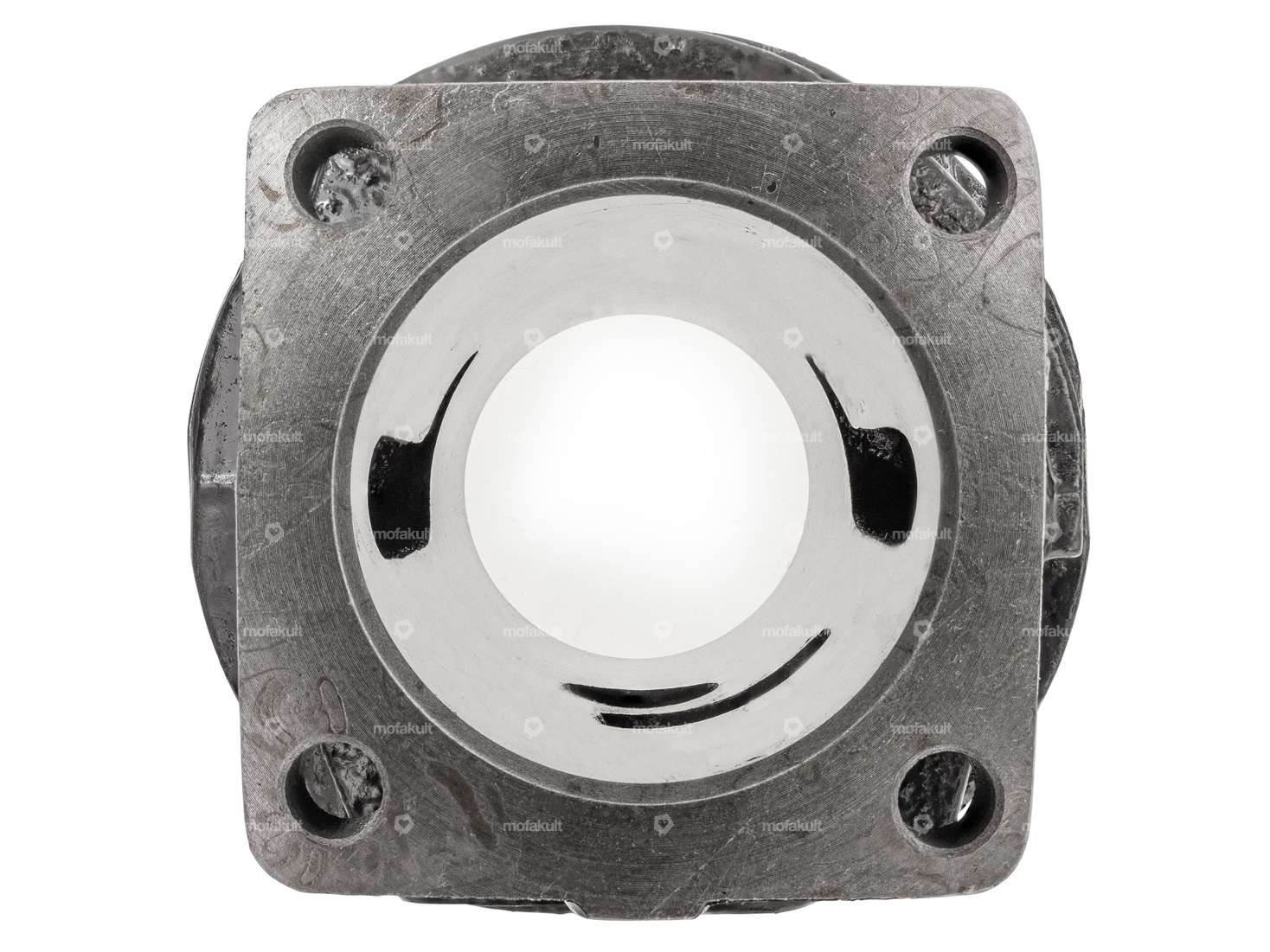

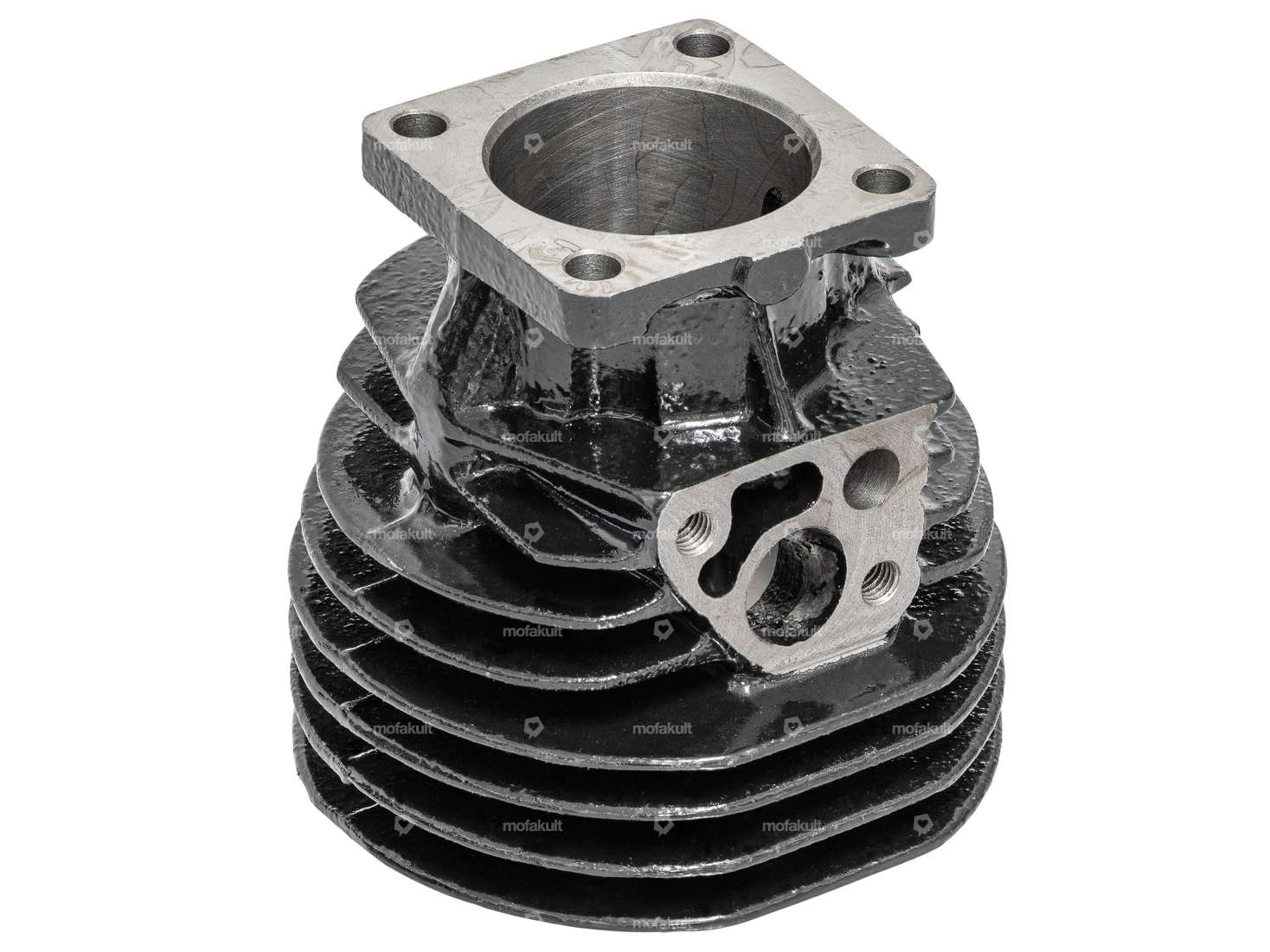

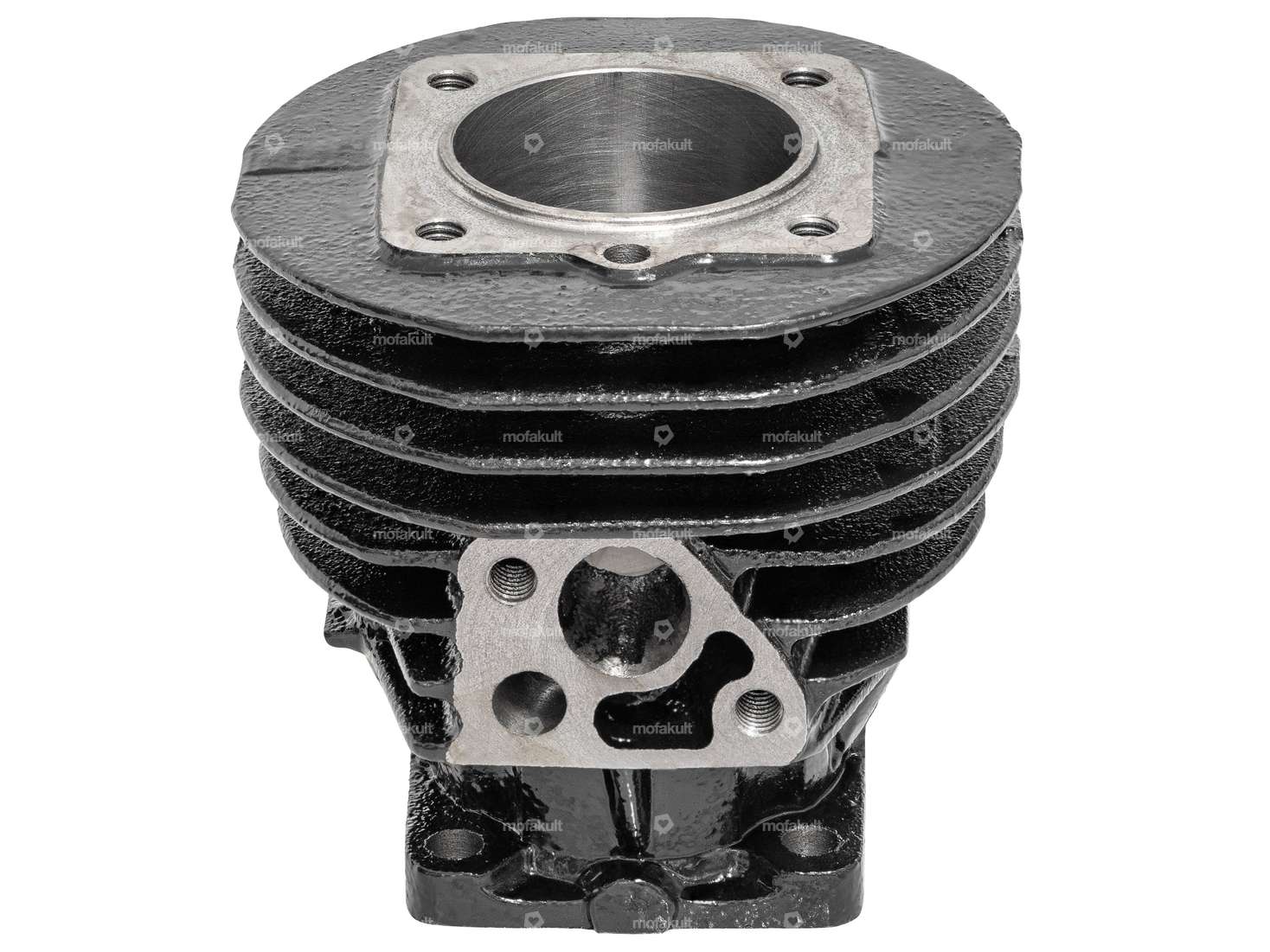

Cylinder Ø 39.5 mm | Solex

Piston 39.4 mm | Solex

Manufacturer: Made in France · Nominal diameter: 39.4 mm · Ø outside piston (A): 39.44 mm · Ø piston pin (B): 12 mm · Compression height (C): 17.9 mm · Curvature (D): 3.05 mm · Total piston height (E): 53.95 mm · Number of piston rings (F): 3 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Straight joint · Piston ring height: 1.7 mm · Weight piston kit: 76 g

Piston 39.4 mm | Solex

Manufacturer: Made in France · Nominal diameter: 39.4 mm · Ø outside piston (A): 39.44 mm · Ø piston pin (B): 12 mm · Compression height (C): 17.9 mm · Curvature (D): 3.05 mm · Total piston height (E): 53.95 mm · Number of piston rings (F): 3 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Straight joint · Piston ring height: 1.7 mm · Weight piston kit: 76 g

Piston rings Ø 39.4 x 1.7 straight pushrod (3 pcs.) | Solex

Manufacturer: Made in France · Nominal diameter: 39.4 mm · Piston ring impact: Straight joint

Exhaust gasket (1A quality) | Solex

Manufacturer: Made in Italy · Place of use: Exhaust

swiing® ingenious 38 mm cylinder kit CH12 "Tuning" camouflaged | Puch

Nominal diameter: 38 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Inlet window: 23 / 20 x 14 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: Yes · Camouflaged: Yes · Area of application: Tuning · Alternative version of the Puch OEM number: 349.7.10.105.0

Saddle spring | Solex

Spring design: Pressure spring · Ø outside: 50 mm · Total length: 120 mm
