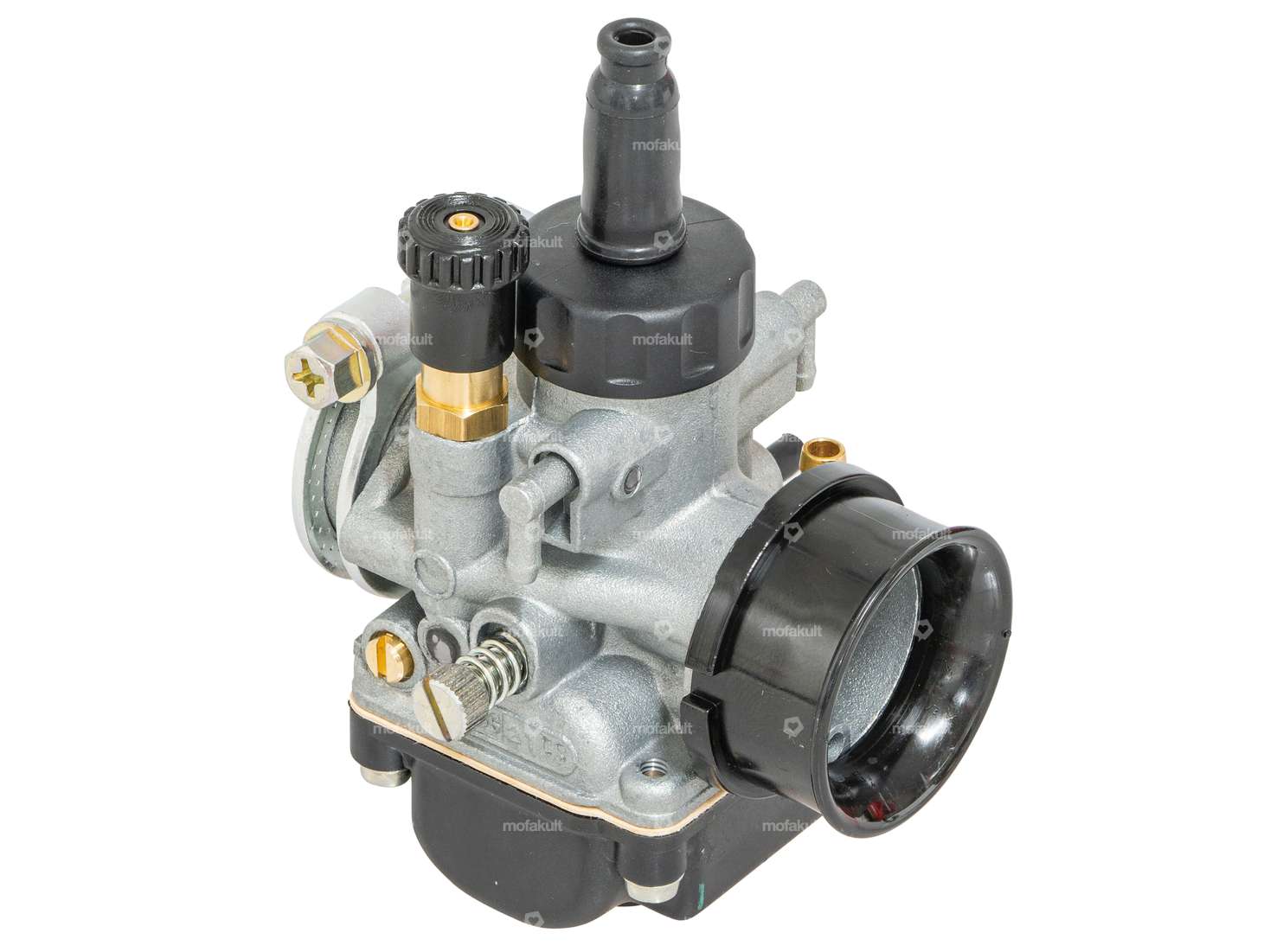

Carousel Image 1

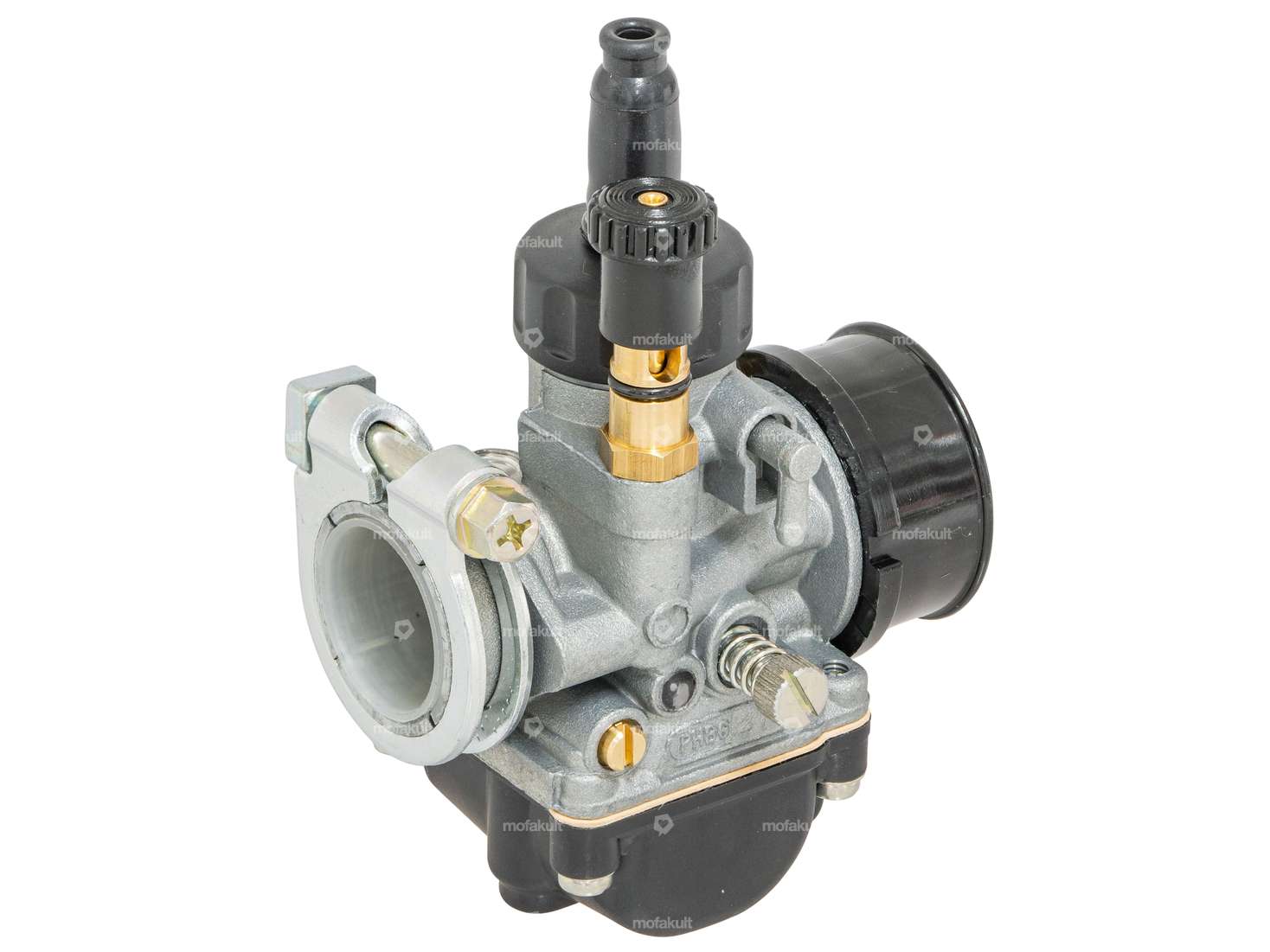

Carousel Image 2

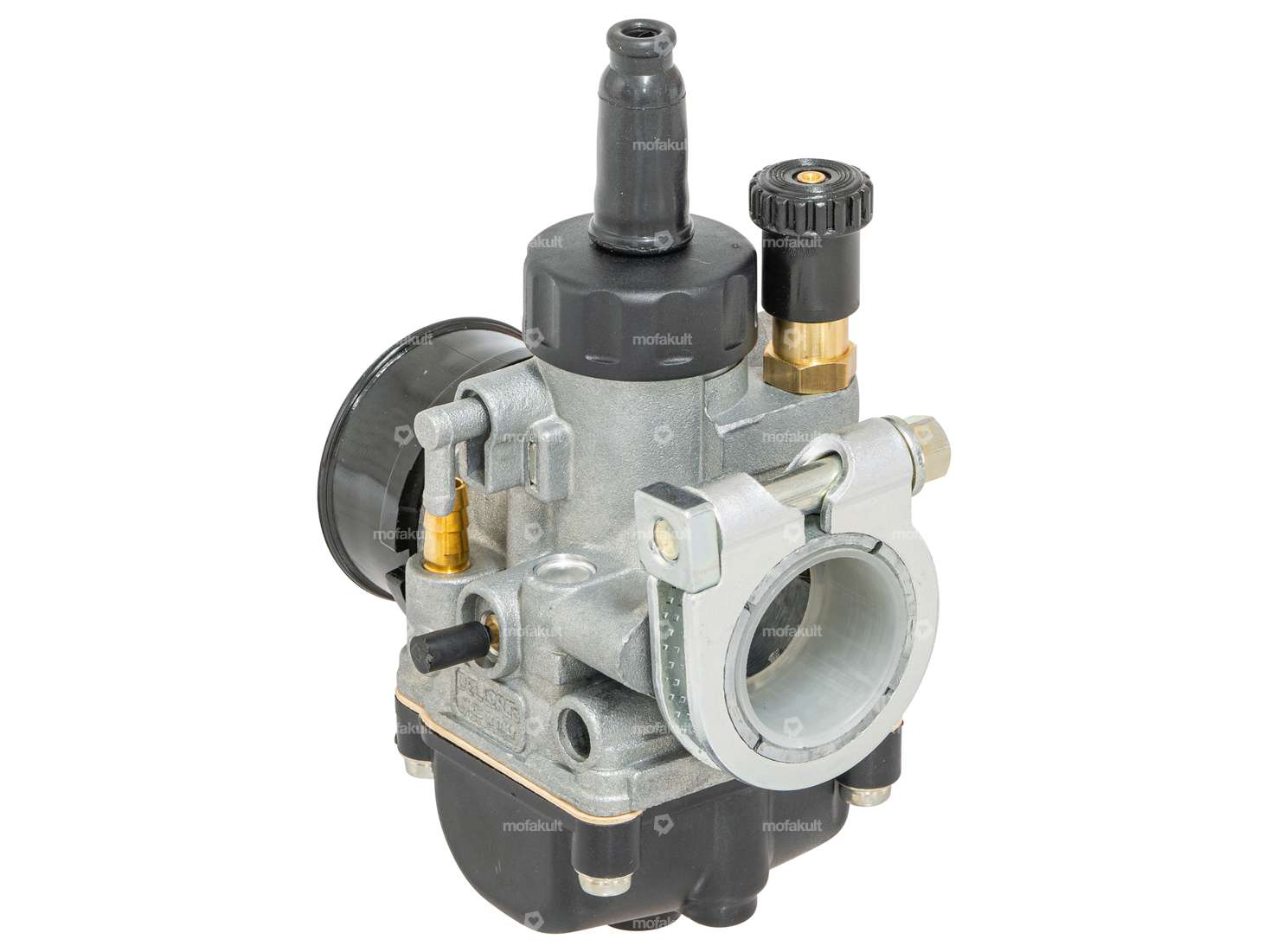

Carousel Image 3

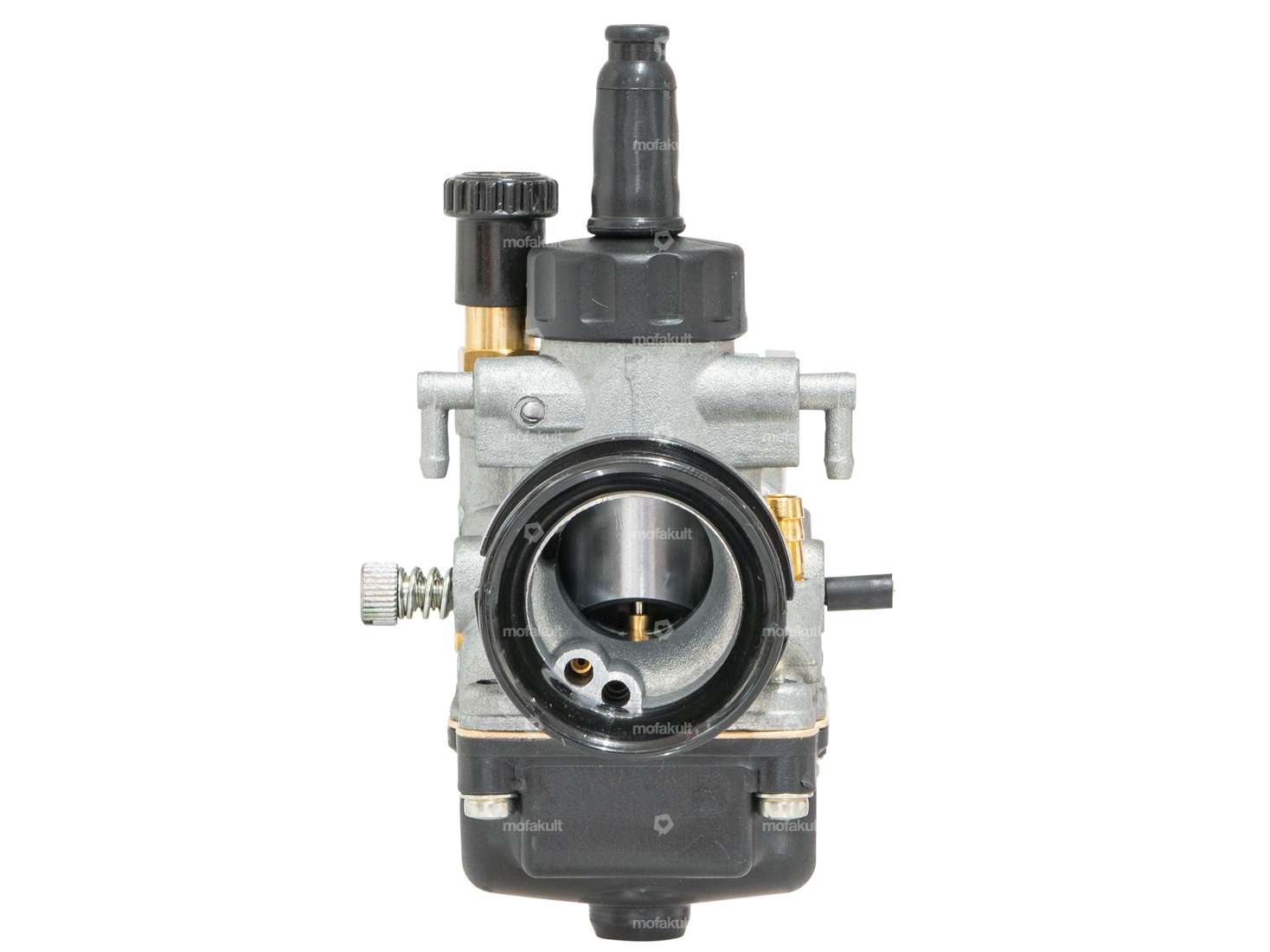

Carousel Image 4
logo_dellorto

Universal

10897

Dell'Orto 21 mm PHBG CS carburetor hand choke

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 133.70

Incl. 17% VAT.

Description

21 mm PHBG racing carburetor for universal use for your moped, moped and small motorcycle.
This high-quality racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 75 cc.

The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and secondary lines and the mixture adjustment screw.

On the air filter side, the carburetor has an M32x1.25 thread on which an intake funnel is mounted. If required, this can be removed in order to attach the air filter directly to the thread.

Main thread size (M5): 92
Side thread size (idle thread): 50
Choked thread size: 60
Connection diameter of air filter without intake funnel: 32 mm (M32 x 1.25)
Connection diameter of air filter with intake funnel: 38 mm
Connection diameter of intake manifold: 24 mm (resp. 26 mm after removing the reduction sleeve)
Total height: 130 mm
Total width: 80 mm

Matching nozzles, air filters and intake manifolds can be found in the accessories section.

Quality product from the Italian manufacturer Dell'Orto.

Nominal diameter21 mm
Width72 mm
ManufacturerDell'Orto
MaterialAluminum
Component group CarburetorCarburetor complete
Mounting typePlug connection clamped
Carburetor typePHBG AS
Colorblack
Ø fuel hose connection6 mm, 5.4 mm
Nozzle threadM5x0.8 (standard thread)
Total length82 mm
Nozzle size92
Ø without reducing sleeve26 mm
Ø Internal connection24 mm
Height125 mm
Ø Air filter connection32 mm, 38 mm
Air filter connection threadMF32x1.25 (fine pitch thread)
Mixed oil connectionYes
Vacuum connectionYes
Choke controlHand choke
Choke nozzle size60
Nozzle block262AU
CamouflagedNo
Size of secondary nozzle50
Area of applicationTuning
