Mediterranean 41 mm tuning kit with 55 cc for your moped / moped with Sachs 503 2AL, AAL, 2BL, ABL CH engine.
The GPO Pomodoro cylinder kit (Italian for tomato) is the sun-ripened, refreshing alternative to comparable greenhouse racing kits. It impresses with its freshness in the lower rev range, powerful acceleration and pulling power, as well as a fruity finish in the upper rev range. The cylinder absorbs more nutrients than original ones, transforming them into juicy, powerful pulp and exuding a tantalizing aroma of oil. A real treat for your engine that fills the streets with passionate flavors.

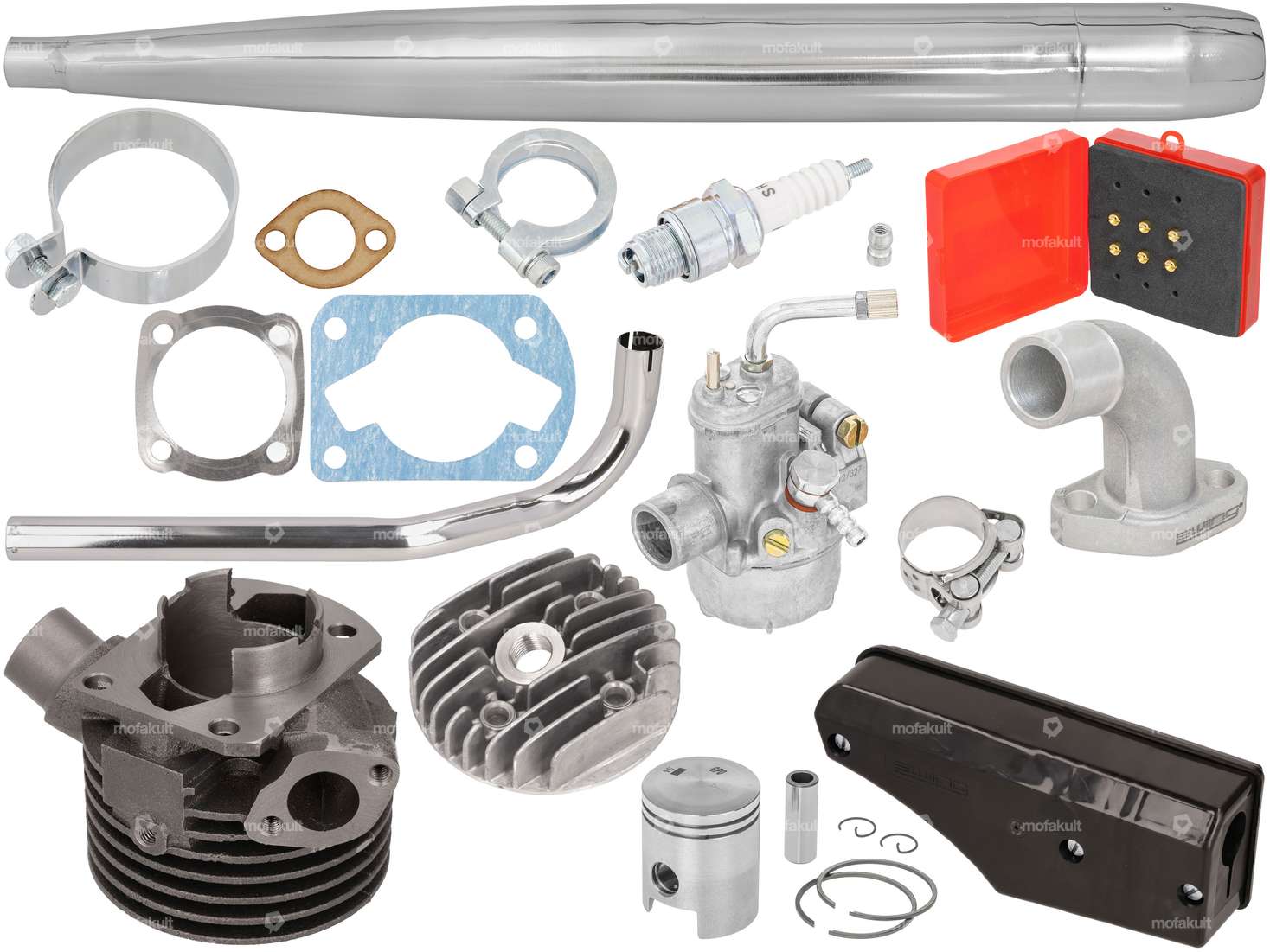

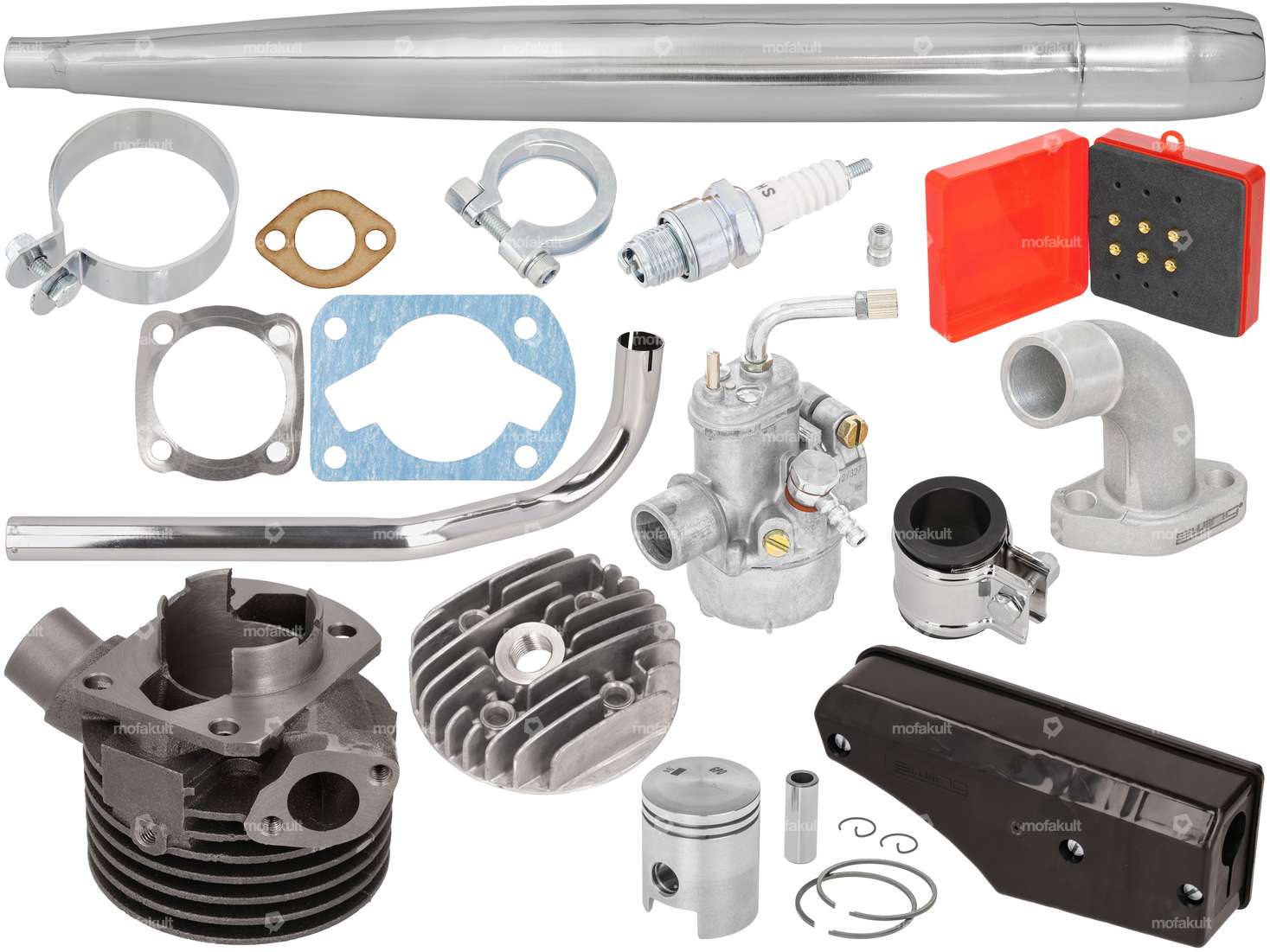

In addition to the racing kit, the set also includes the corresponding camouflaged 15 mm racing carburetor, a racing air filter and a resonance wing. In the selection field, you can choose between the two matching intake manifolds, depending on whether you need the short or long version.
The set includes the following fixed parts:
Hole pattern [mm]: 40 x 60 / 37 x 37 · Manufacturer: GPO · Material: Gray cast iron · Displacement: 57 ccm · Nominal diameter: 41 mm · Ø cylinder neck: 45 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 22 mm · Ø Inlet inside: 19 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Outlet type: clamped
Manufacturer: GPO · Nominal diameter: 41 mm · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm · Piston weight: 86 g
Manufacturer: GPO · Material: Sealing paper, Sealing carton, Aluminum · Number of components: 3 pcs · Thickness: 0.3 mm, 1 mm · Ø cylinder: 41 mm · Hole spacing inlet: 0 - 32 mm
Hole pattern [mm]: 37 x 37 · Manufacturer: AKOA · Material: Aluminum · Ø cylinder: 41 mm · Number of fixing points: 4 pcs · Candle thread: short · Decompressor: No · Height: 30 mm · Area of application: Tuning
Nozzle block: 2.17 · Nozzle size: 62 · Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Material: Aluminum · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Clamping screw torque (max.): 4 N/m · Total length: 66 mm · Width: 50 mm · Height: 95 mm · Area of application: Tuning · Component group Carburetor: Carburetor complete
Manufacturer: swiing® revival parts · Camouflaged: No · Color: black · Material: Plastic · Filter type: Racing screen · Total length: 165 mm · Width: 68 mm · Height: 52 mm · Ø Internal connection: 20 mm · Mounting type: Plug connection clamped · Area of application: Tuning
Nozzle size: 54, 56, 58, 60, 62, 64 · Manufacturer: swiing · Material: Brass · Quantity: 6 pcs · Carburetor type: SRE, SRA (1/11/35) Velux, SRA (1/11/31) Velux, SRF, SRC · Nozzle type: Main nozzle · Nozzle thread: M3.5x0.6 (standard thread) · Total length: 6 mm · Drive: Slot · Component group Carburetor: Spraying
Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø outside: 70 mm · Total length: 730 mm · Ø Internal connection: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp
Manufacturer: swiing · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø inside: 26 mm · Ø outside: 28 mm · Total length: 410 mm · Mounting type: Bride · Flame tube attachment: inserted
Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Nominal diameter: 70 mm · Clamping diameter: 67 - 71 mm · Width: 28 mm · Thickness: 2 mm · Number of fixing points: 1 pcs · Ø mounting hole: 8.2 mm
Manufacturer: swiing® ingenious parts · Material: Steel, FPM - Fluororubber · Surface: chrome-plated · Color: Chrome · Ø inside: 25 - 28 mm · Width: 40 mm · Mounting type: Nuts & bolts · Total length: 40 mm
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø inside: 26 - 28 mm · Ø outside: 39 mm · Material thickness: 1.5 mm · Width: 42 mm · Mounting type: Nuts & bolts
Details
| Manufacturer | GPO, swiing® ingenious parts, NGK |
| Material | Gray cast iron |
| Displacement | 55 ccm |
| Nominal diameter | 43 mm |
Suitable for the following models
| Sachs | 503 - AAL, ABL, 2AL / 2BL |
Accessories & related products
swiing® revival cylinder base gasket 0.3 mm | Sachs 503
Manufacturer: swiing® revival parts · Material: Oiled paper · Place of use: Cylinder base · Thickness: 0.3 mm · Nominal diameter: 45 mm · Ø inside: 45 mm · Ø cylinder: 38 - 40 mm · Hole pattern [mm]: 60 x 40 · Area of application: Standard
EUR 3.85
swiing® ingenious tuning set 38 mm | Sachs 503 (fan-cooled)
Nominal diameter: 38 mm · Manufacturer: GPO · Manufacturer: NGK · Manufacturer: swiing® ingenious parts · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 60 x 40 · Decompressor: No · Camouflaged: No · Area of application: Tuning
EUR 500.90
Not in stock
swiing® ingenious tuning set 40 mm | Sachs 503 (fan-cooled)
Nominal diameter: 40 mm · Manufacturer: GPO · Manufacturer: NGK · Manufacturer: swiing® ingenious parts · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 60 x 40 · Decompressor: No · Camouflaged: No · Area of application: Tuning
EUR 512.10
Not in stock
GPO sprocket (10-18 teeth, of your choice) | Sachs 502, 503, 504, 505, 535
Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: sandblasted · Recording type: Ø15 x SW12 · Number of teeth: 10 pcs · Number of teeth: 11 pcs · Number of teeth: 12 pcs · Number of teeth: 13 pcs · Number of teeth: 14 pcs · Number of teeth: 15 pcs · Number of teeth: 16 pcs · Number of teeth: 17 pcs · Number of teeth: 18 pcs · Thickness: 4.3 mm · Total thickness: 5.8 mm
EUR 14.50
GPO 43 mm "Pomodoro" cylinder kit | Sachs 503
Manufacturer: GPO · Material: Gray cast iron · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 45 mm · Ø Outlet outside: 26 mm · Ø Inlet inside: 19 mm · Thread inlet: M6x1 (standard thread) · Ø outlet inside: 22 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 40 x 60 / 37 x 37 · Hole spacing inlet: 32 mm · Area of application: Tuning
EUR 281.30
