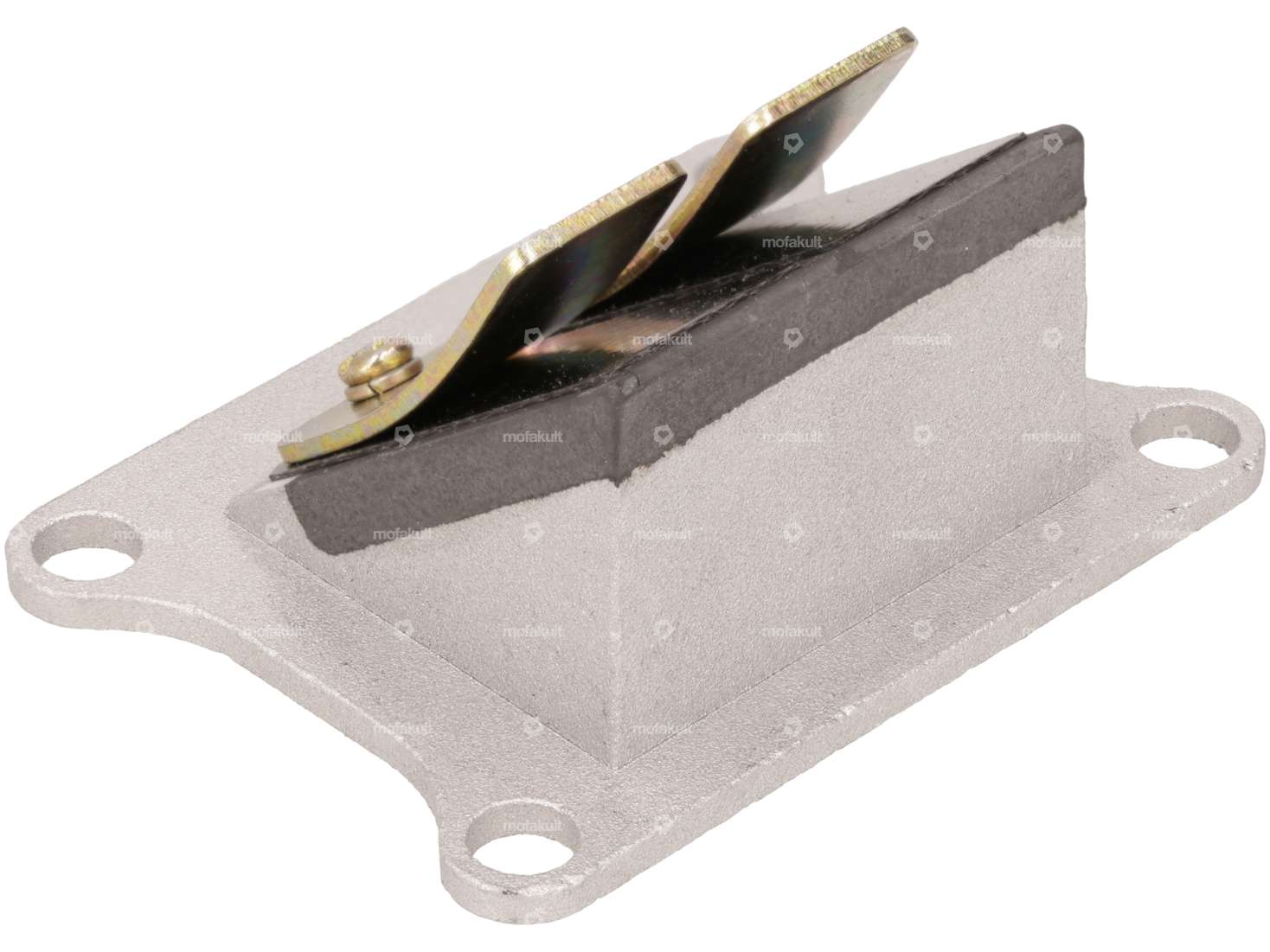

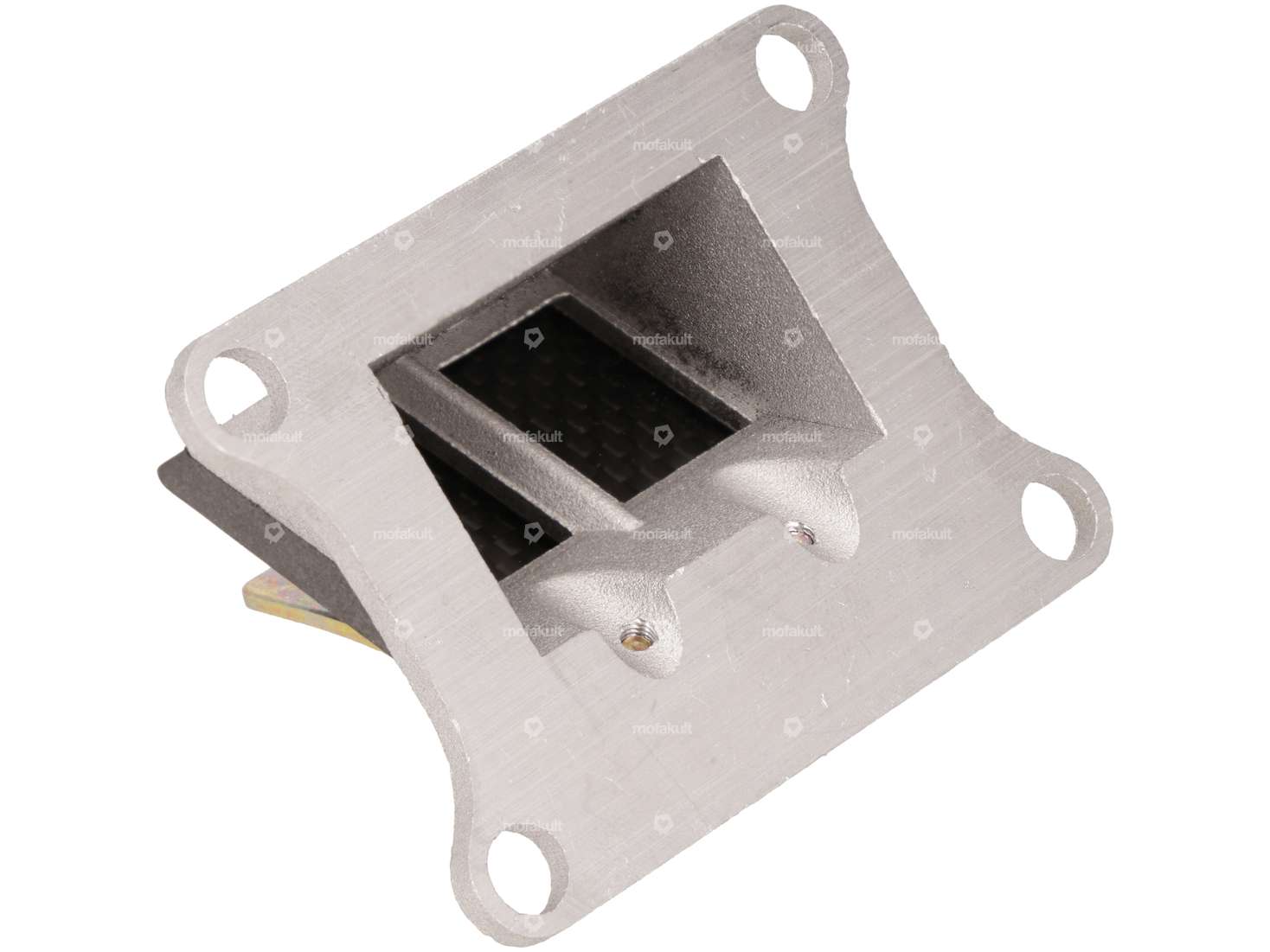

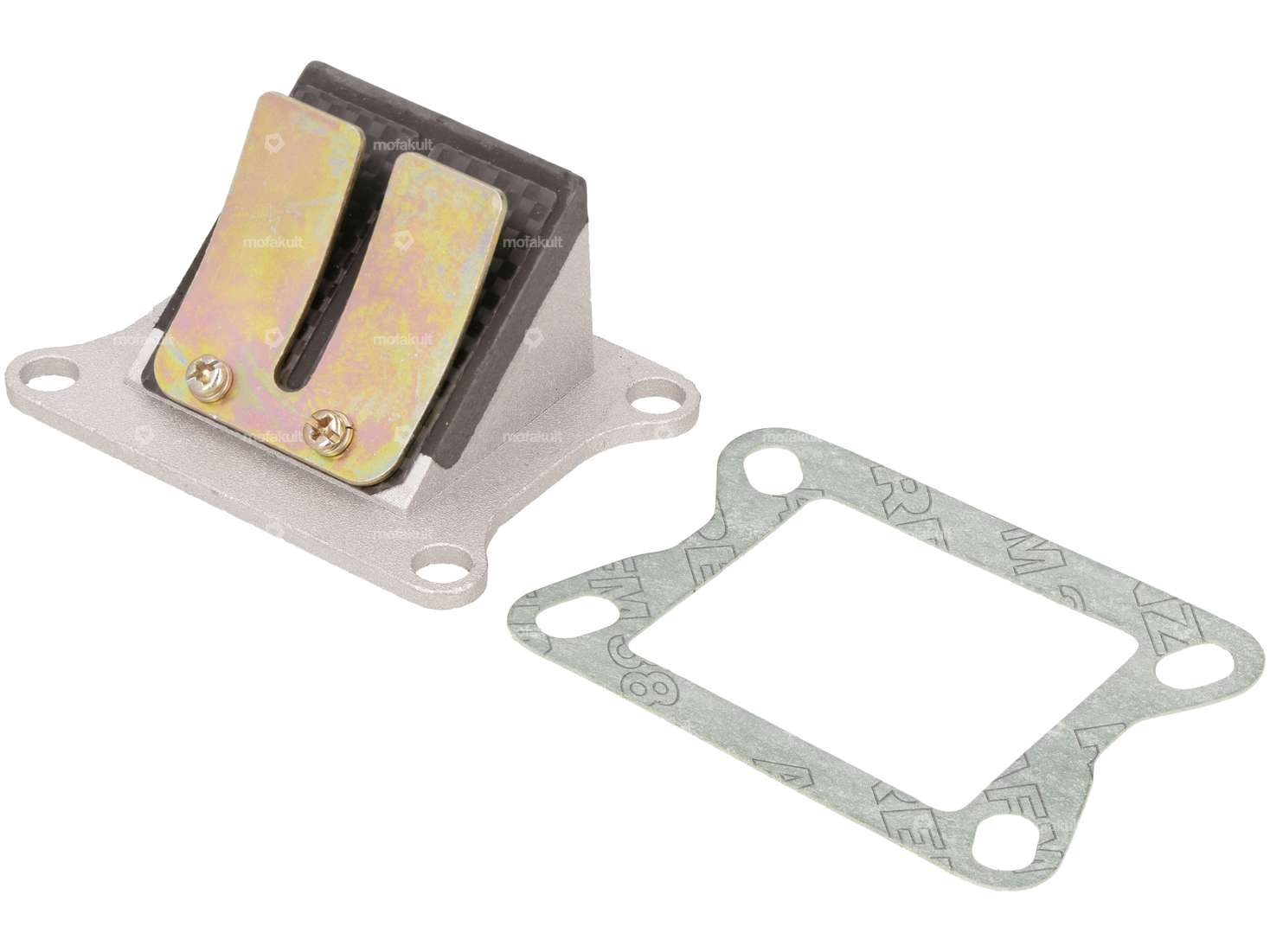

Parmakit 2-folding diaphragm insert carbon

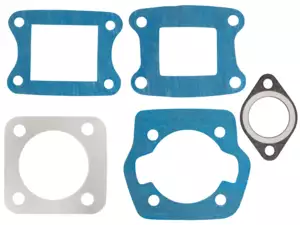

Athena gasket set 45 mm AJH diaphragm | Puch

Manufacturer: Athena · Area of application: Tuning · Ø cylinder: 45 mm · Number of components: 5 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm / 60 x 40 mm

Intermediate flange cylinder Athena AJH | Puch

Material: Plastic · Area of application: Tuning · Color: black-matt · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40

Athena 45 mm cylinder kit incl. diaphragm AJH | Puch

Nominal diameter: 45 mm · Manufacturer: Athena · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 26 mm · Ø Inlet inside: 16 mm · Hole spacing inlet: 40 mm · Hole spacing inlet: 60 mm · Inlet window: 38 x 25 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Area of application: Tuning · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Decompressor: No

Intake manifold Athena AJH Inox | Puch

Manufacturer: Made in Netherlands · Material: Chrome steel (colloquially known as stainless steel) · Ø inside: 21 mm · Ø External connection: 24 mm · Total height: 60 mm · Mounting type: Screws · Hole pattern [mm]: 60 x 40 · Area of application: Tuning · Number of fixing points: 4 pcs

2-folding diaphragm insert Athena AJH | Puch

Mounting type: Screws · Number of flaps: 2 pcs · Membrane material: Spring steel · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 mm · Area of application: Tuning

Athena diaphragm seal AJH | Puch

Thickness: 0.5 mm · Manufacturer: Athena · Material: Oiled paper · Place of use: Admission · Ø screw holder: 6.7 mm · Area of application: Tuning · Hole pattern [mm]: 40 x 62

Magura cable clamp Ø 8 x 15 mm

Manufacturer: Magura · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Area of application: Standard · Ø Cable bushing: 2.3 mm · Drive: External hexagon · Drive: Slot · Total length: 15 mm · Screw head: Hexagon · Ø outside: 8 mm · Thread type: M6x1 (standard thread) · Ø Bundle: 6 mm · Width across flats: 7 mm · Thread length: 7 mm

swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 30 mm · Thread type: M6x1 (standard thread) · Diameter: 5.95 mm · Nominal diameter (thread): 6 mm · Strength class: 10.9 · Thread length: 12 mm

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Cable length: 2200 mm · Nipple length: 5 mm

GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Camouflaged: Yes · Surface: sandblasted · Area of application: Tuning · Ø cylinder: 45 mm · Width: 125 mm · Height: 55 mm · Total length: 135 mm · Number of fixing points: 4 pcs · Candle thread: short · Hole pattern [mm]: 44 x 44 · Decompressor: No

Magura Gas/Deco Cable Clamp, Ø 5 x 6 mm

Manufacturer: Magura · Material: Brass · Material: Steel · Surface: nickel-plated · Number of components: 2 pcs · Thread type: M4x0.7 (standard thread) · Total length: 6 mm · Ø Cable bushing: 1.6 mm · Drive: Slot · Screw head: Lens head · Ø outside: 5 mm · Thread length: 4 mm

Athena gasket set 45 mm AJH diaphragm | Puch

Manufacturer: Athena · Area of application: Tuning · Ø cylinder: 45 mm · Number of components: 5 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm / 60 x 40 mm

Intake manifold Athena AJH Inox | Puch

Manufacturer: Made in Netherlands · Material: Chrome steel (colloquially known as stainless steel) · Ø inside: 21 mm · Ø External connection: 24 mm · Total height: 60 mm · Mounting type: Screws · Hole pattern [mm]: 60 x 40 · Area of application: Tuning · Number of fixing points: 4 pcs

swiing® revival gasket gearbox cover engine 1 mm | Puch E50

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Thickness: 1 mm · Ø inside: 106 mm · Ø outside: 116 mm · Number of fixing points: 4 pcs · Number of components: 1 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1

Cable end sleeve 5 mm aluminium blue anodized

Ø inside: 5 mm · Material: Aluminum · Surface: anodized · Color: blue · Ø Cable bushing: 1.9 mm · Total length: 15 mm · Ø outside: 6 mm
