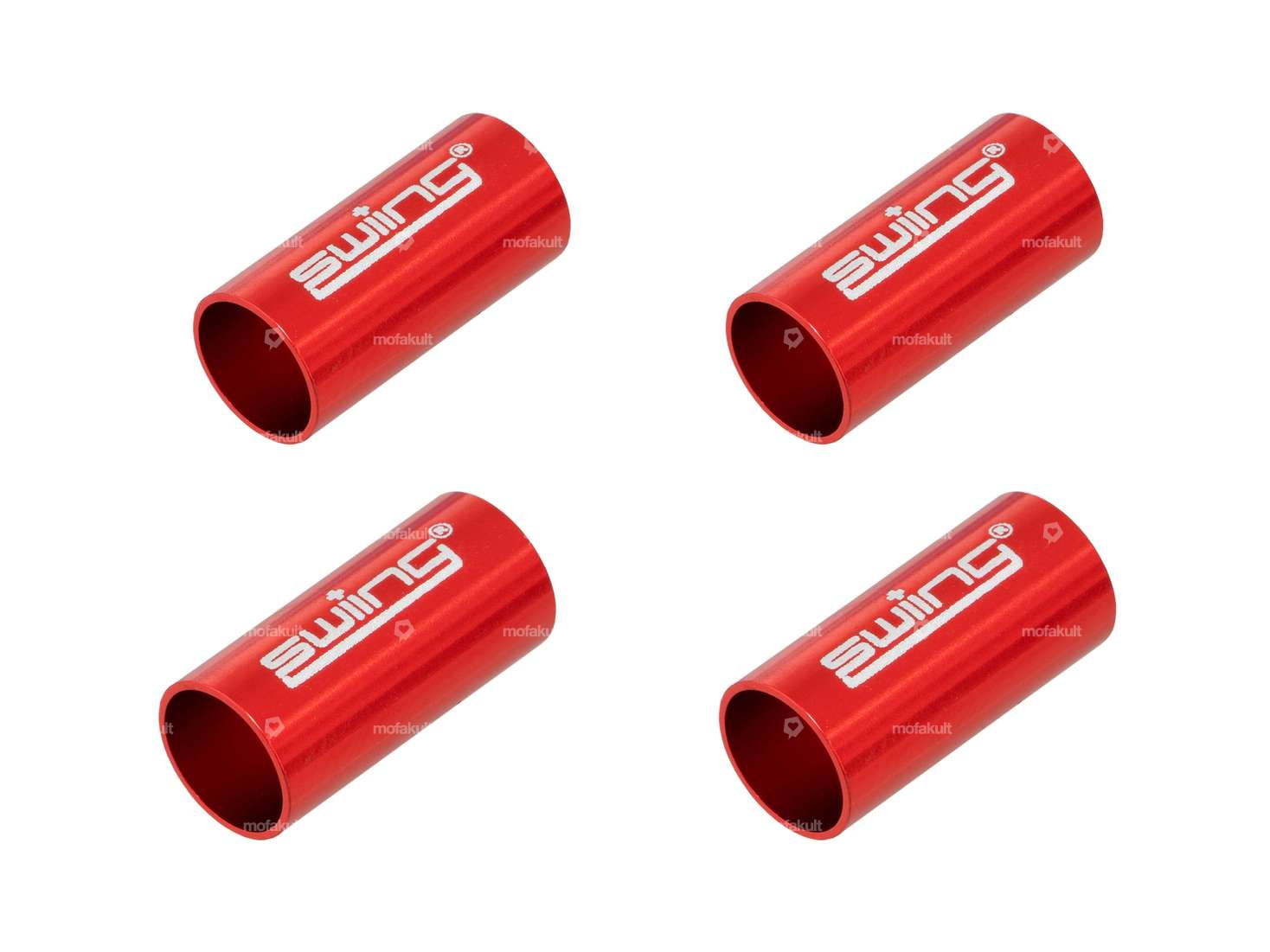

Centring bushes made of aluminium, red anodized, for clean mounting of the cylinder cover on Puch X30 Velux mopeds / mopeds.
The bushes can be used with all 38 / 40 / 41 mm swivel cylinder heads in conjunction with M7 threaded stud bolts.

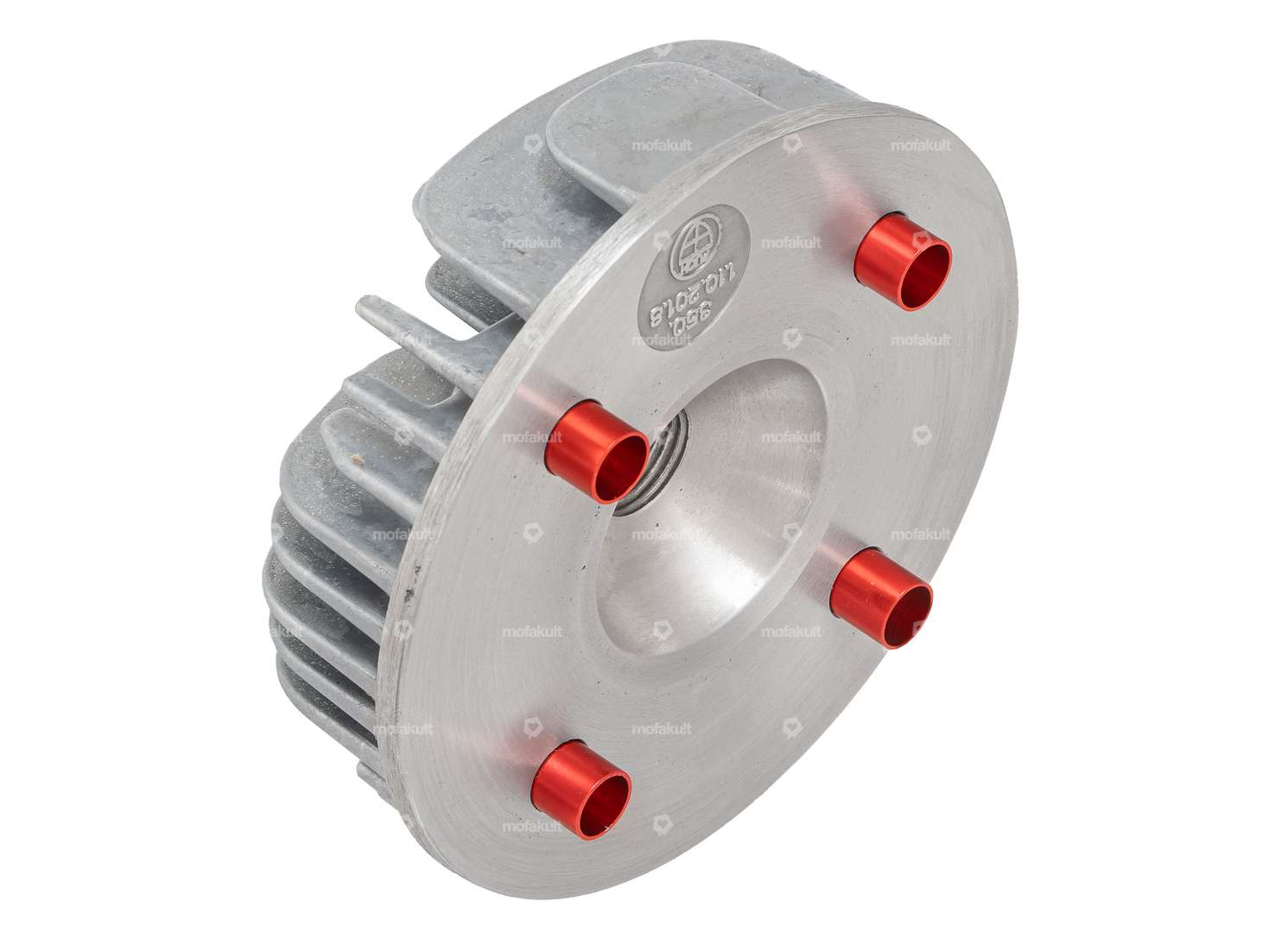

They are pushed into the holes in the cylinder cover so that they protrude slightly above the sealing surface (see Figure 2 for illustration).
We recommend that you glue the guide bushes into the cylinder head with Loctite adhesive so that they do not move during assembly/disassembly.
Now the cylinder head can be pushed onto the stud bolts perfectly centered.
| Ø outside | 8 mm |
| Total length | 17 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Nominal diameter inside | 7 mm |
| Ø inside | 7.1 mm |
| Puch | Z50 (X30 Velux) |
Ratings
Accessories & related products
Loctite 638 Joining shaft-hub high-strength 10 ml
Temperature resistance (min.): -75 - 150 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Color: green · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Danger · Contents: 10 ml · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Adhesion: high-strength · Type of application: 1K · Gap dimension (max.): 0.25 mm · Alignment time: 300 sec · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m
EUR 25.20
EUR 2’520.00/l
Moped fans also bought

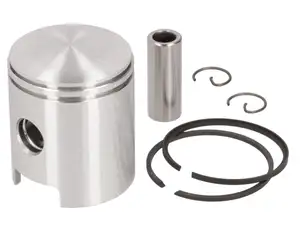

GPO piston 41 mm (12 mm KoBo) | Puch X30 Velux, M50, MS50, VS50, DS50, VZ50
