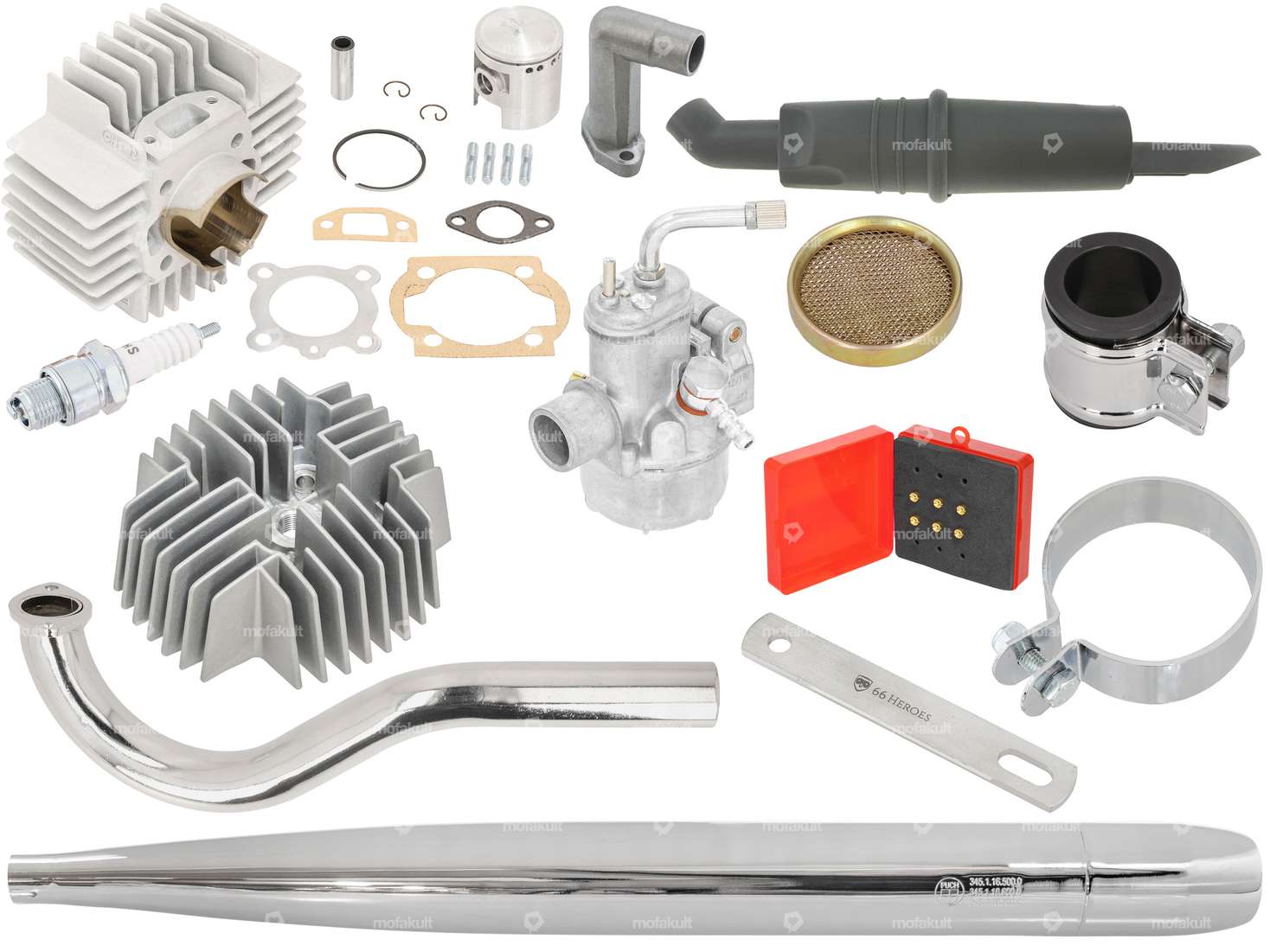

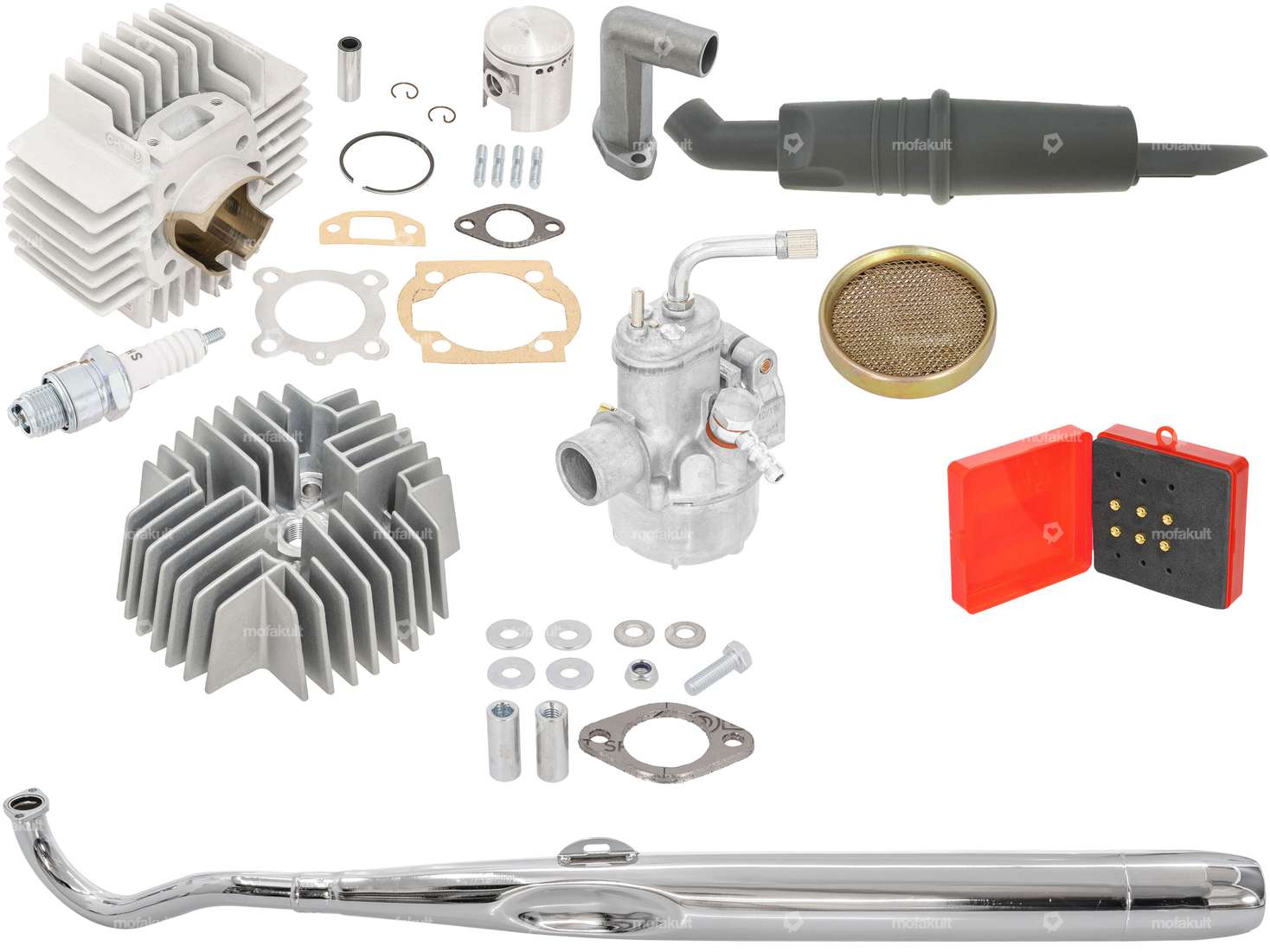

High-quality 45 mm tuning kit for your Puch X30 Sport, Turbo, and Sprinter moped with a 2-speed Z50 engine.
The 45 mm racing kit, the swiing® ingenious 15 mm SRE carburetor, as well as the intake manifold and racing exhaust, are perfectly matched and guarantee power across the entire RPM range.
With the exception of the intake manifold, almost all parts bear the original cast or stamped numbers. For example, the 70 ccm cylinder is marked with a “CH12,” the carburetor bears the code “1/12/197,” and the resonance silencer features the Puch logo and engraved numbers.
A jet set is included for perfect tuning of the modified carburetor.
Engraved numbers on the muffler:
345.1.16.500.0
345.1.16.600.0
345.1.16.700.0
All individual parts are listed below for closer inspection.
When you purchase this complete set, you’ll save a significant percentage off the retail price of the individual parts.
Note: For proper installation, the mounting holes on the exhaust manifold must be slightly enlarged.
The engine housing and the piston must be slightly adjusted, as the piston interferes with the rear section of the housing. Please observe the installation direction during assembly. The piston is installed with the arrow pointing toward the exhaust on the exhaust side.
You can find more tuning kits in the accessories section.
A sophisticated product from the premium brand swiing® that meets the highest standards.
Hole pattern [mm]: 44 x 44 · Inlet window: 23.6 / 21.2 x 14.7 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 45 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Camouflaged: Yes · Area of application: Tuning
Hole pattern [mm]: 44 x 44 · Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 45 mm · Camouflaged: Yes · Number of fixing points: 4 pcs · Candle thread: short · Decompressor: No · Total length: 135 mm · Width: 125 mm · Height: 55 mm · Area of application: Tuning
Manufacturer: swiing® ingenious parts · Material: Aluminum · Ø inside: 16 mm · Ø External connection: 20 mm · Mounting type: Screws · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Total height: 70 mm · Total length: 48 mm · Area of application: Tuning
Nozzle block: 2.17 · Nozzle size: 62 · Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Material: Aluminum · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Clamping screw torque (max.): 4 N/m · Total length: 66 mm · Width: 50 mm · Height: 95 mm · Area of application: Tuning · Component group Carburetor: Carburetor complete · Alternative version of the Puch OEM number: 349.9.15.300.0, 349.6.15.400.0, 349.7.15.700.0, 349.4.15.500.0, 349.4.15.000.0, 349.4.15.300.0, 349.1.15.100.0, 349.8.15.400.0, 349.2.15.800.0
Manufacturer: GPO · Camouflaged: No · Color: yellow · Material: Steel · Surface: galvanized (yellow) · Height: 9.7 mm · Ø outside: 52 mm · Area of application: Tuning
Manufacturer: swiing® revival parts · Camouflaged: Yes · Color: gray · Material: Plastic · Filter type: Racing screen · Ø Internal connection: 20 mm · Mounting type: Plug connection clamped · Area of application: Tuning, Standard
Nozzle size: 64, 66, 68, 70, 72, 74 · Manufacturer: swiing® revival parts · Material: Brass · Quantity: 6 pcs · Carburetor type: SRE, SRF, SRA (1/11/35) Velux, SRA (1/11/31) Velux, SRC · Nozzle type: Main nozzle · Nozzle thread: M3.5x0.6 (standard thread) · Total length: 6 mm · Drive: Slot · Component group Carburetor: Spraying
Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø outside: 70 mm · Total length: 985 mm · Ø Flame tube outside: 28 mm · Exhaust type: Cigar · Mounting type: Welded lug · Flame tube attachment: Nuts
Manufacturer: swiing® ingenious parts · Material: Steel, Graphite / Graphite · Surface: galvanized (blue) · Thread type: M6x1 (standard thread)
| Puch | Z50 (X30 Sport) |
